Place of Origin:
CHINA
Brand Name:
EWEN ELECTRICAL
Certification:
CE
Model Number:
TNS(SVC)-75KVA
Video

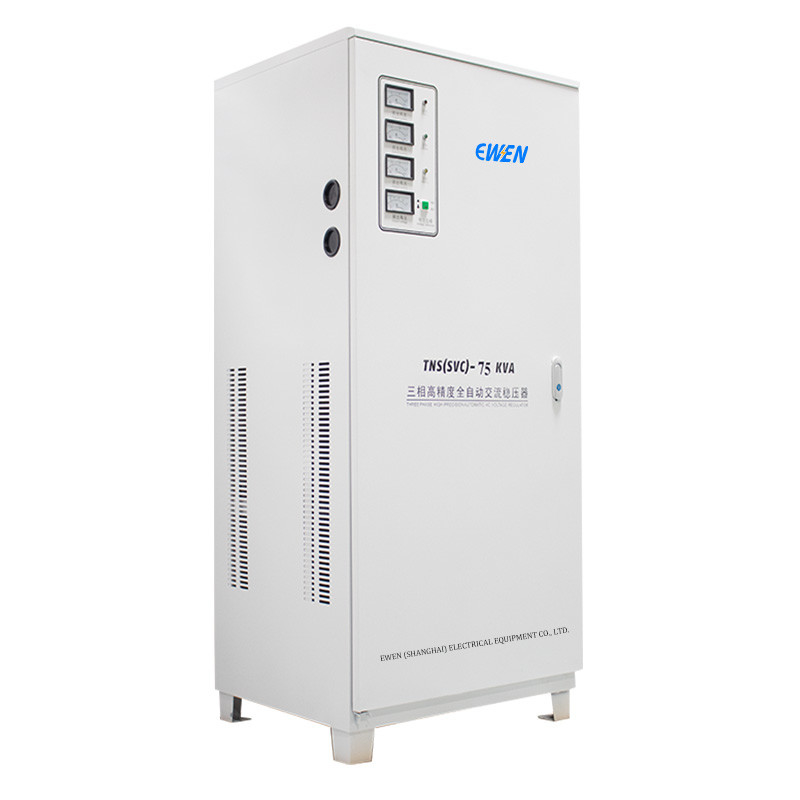

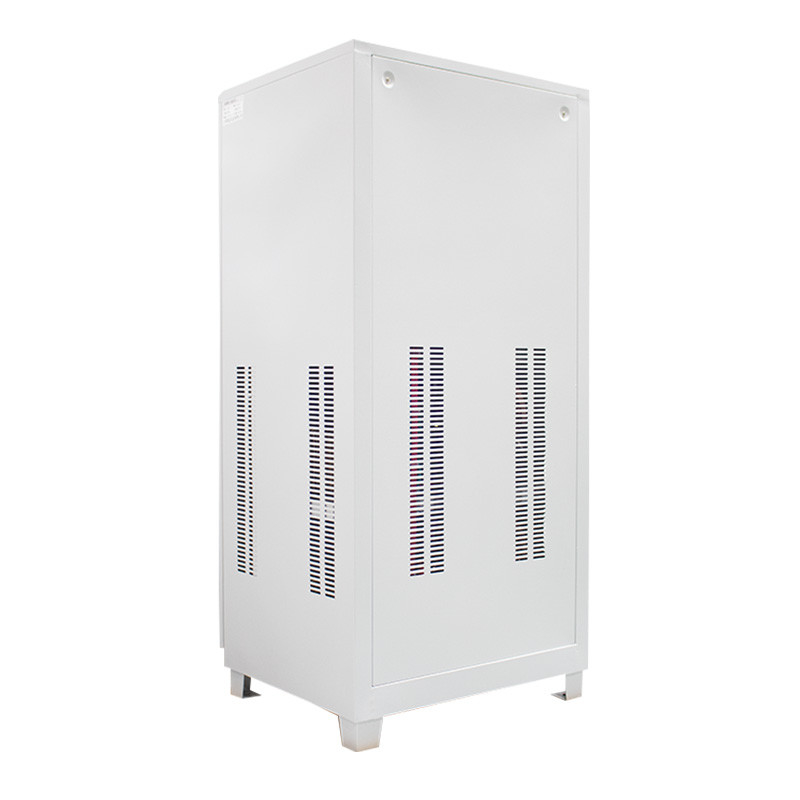

TNS(SVC)-75KVA AC Power Stabilizer Three Phase Automatic Voltage Regulator Stabilizers AVR 380V 230V 220V 400V 415V 440V 480V
EWEN SHANGHAI is both a manufacturer and trading company dealing with import and export business.
We mainly focus on design and production of major electrical products like voltage stabilizer, transformer, variac reactor, inverter, AC DC switching power supply etc.
We are located in No. 420, Qianpeng Road, Wai gang Town, Jiading District, Shanghai, PRC.
We have over 25 years experience in this field.

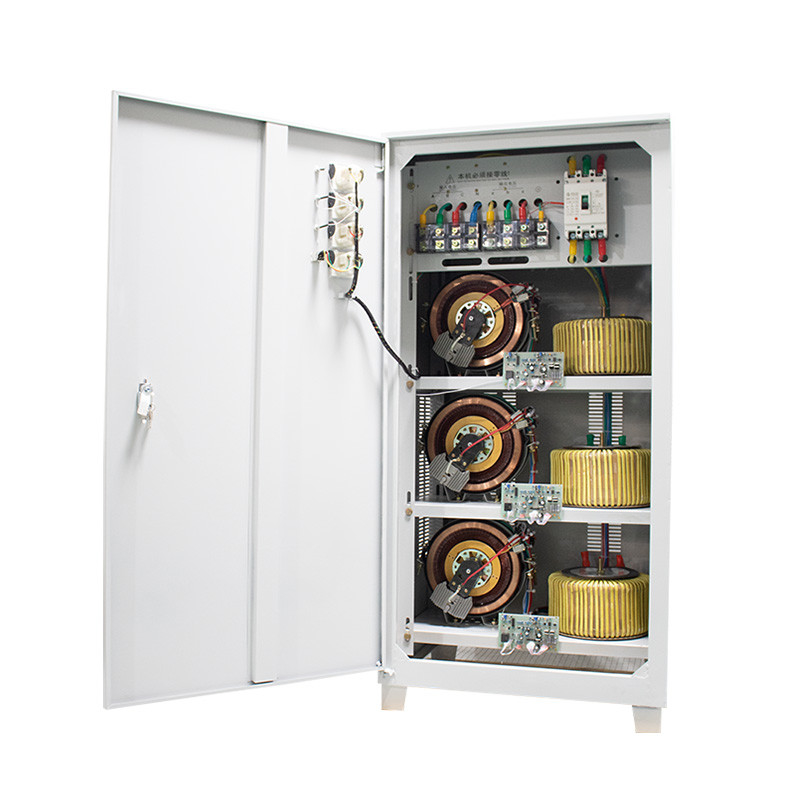

AC power stabilizer is one of the voltage stabilizers that we produce. The working theory is as follows:
When the grid voltage fluctuates or changes,
the control sampling circuit of the automatic voltage regulator would give out a signal to the servo motor,
and then the servo motor would drive the carbon brush to move along the surface of the copper coil.
With the position change of the carbon brush, the voltage would be regulated to the voltage that you require.
Three phase ac power stabilizer features in: full capacity, low loss, fast response speed to voltage fluctuation,
sound and stable performance, high output accuracy, and wide input voltage range tolerance.
| Product Name | Three Phase AC Power Voltage Stabilizer/Regulator |
| Rated Capacity | 75KVA (Could be tailored according to your needs) |
| Product Model | TNS(SVC)-75KVA |
| Input Voltage Range | Could be tailored according to your demands |
| Rated Output Voltage | Could be customized according to your needs |
| Rated Working Frequency | 50-60HZ |
| Output Voltage Accuracy | 2%-5% |
| Insulation Class | F |
| Waveform Distortion | No additional waveform distortion |
| Phase | 3 phase |
| Ambient Working Temperature | －10℃~＋45℃ |
| Ambient Relative Humidity | 30%-80% |
| Protection Class | IP 23 (Could be tailored if outdoor waterproof type is needed) |
| Cooling Way | Dry type air colling |
| Insulation Resistance | ≥5MΩ |
The parameters could be determined by the actual situation.
If you have any special requirement, please share with us more details.
Ewen (Shanghai) Electrical Equipment Co., Ltd. is dedicated to providing comprehensive electrical solutions.
AC power stabilizer could be applied in factories, railway stations, hospitals etc.
It could be applied with different electrical equipment, like the CNC machine, laser-cutting machine,
automation equipment, import and export device, robot, elevator, and medical device etc.
We adhere to the business policy of seeking development by science and technology and survival by quality,
and wins the recognition of customers with excellent technology, advanced equipment,
high-quality products, thoughtful service, flexible business methods and good corporate reputation.
For more detailed product information, please feel free to contact us at any time.
